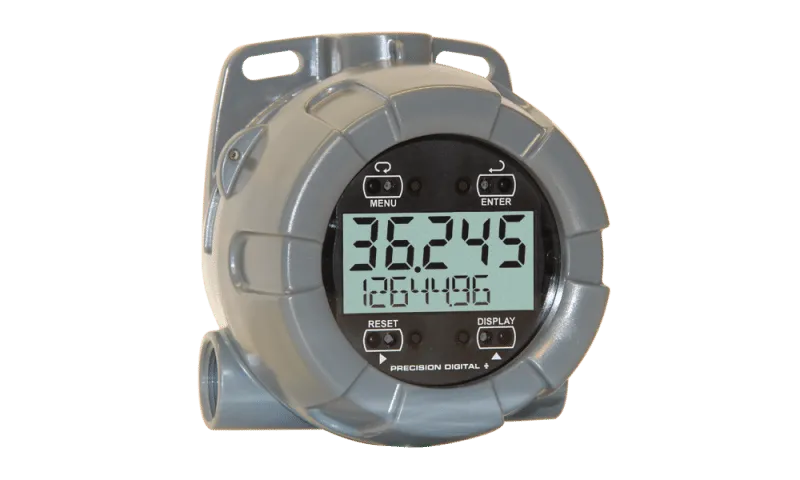

Precision Digital PD6720 Loop-Powered Flow Rate Totalizer

$587

Part Number: PD6720 Categories: , Tag:
  • Email Us: sales@celectric.com.my
  • WhatsApp Us: +60165519084
  • Input: Current (4-20 mA)
    Display Category: LCD, Dual Line, Sunlight Readable
    Display: Dual Line, 0.7″ & 0.4″ High, 5 & 7 Digits, Decimal, LCD
    Warranty: 3 years

    $587

    Usually ships in 2 to 4 weeks

    The Vantageview PD6720 is a plastic, field-mounted, loop-powered flow rate/totalizer that can display flow rate and total from an analog output (4-20 mA) flowmeter. The fact that this meter is loop-powered means that there is no need to run additional, costly power lines. The display has a five digit upper display for rate, a seven alpha-numeric character lower display for total, and comes standard with a backlight. The PD6720 is built in a NEMA 4X and IP65 rated plastic enclosure which can stand up to even the harshest environmental conditions. Two features that really make it stand out are a wide viewing angle display and SafeTouch® through-window buttons. These buttons allow the PD6720 to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.

    • 4-20 mA Input Loop-Powered
    • 5-Digit, 0.7″ (17.8 mm) Upper Display
    • 7 Alphanumeric Character, 0.4″ (10.2 mm) Lower Display
    • Loop or External DC-Powered Backlight Standard
    • SafeTouch Through-Window Button Programming
    • Password Protection
    • 3.0 V Drop without Backlight
    • Plastic NEMA 4X, IP65 Enclosure
    • Flanges for Wall or Pipe Mounting
    • Linear, Square Root, or Programmable Exponent
    • Operates from -40 to 75°C
    • Rate in Second, Minute, Hour, or Day
    • Open Collector Pulse or Alarm Output

    General

    Display: Upper: Five digits (-9,999 to 99,999) 0.70″ (17.8 mm) high, 7-segment, automatic lead zero blanking. Lower: Seven characters 0.4″ (10.2 mm) high, 14 segment alphanumeric. Symbols: for high & low alarm, password lock. Backlight: white
    Display Update Rate: Ambient > -25°C: 2 Updates/Second. Ambient < -25°C: 1 Update/5 Seconds
    Display Orientation: Display may be mounted at 90° increments up to 270° from default orientation.
    Overrange: Display flashes 99,999
    Underrange: Display flashes -9,999
    Programming Method: Four SafeTouch® through-window buttons when cover is installed. Four internal pushbuttons when cover is removed.
    Noise Filter: Programmable Lo, Med, Hi, or Off
    Recalibration: Recalibration is recommended at least every 12 months.
    Max/Min Display: Max/Min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
    Password: Programmable password restricts modification of programmed settings.
    Advanced Functions: Live input calibration, linearization, square root, or programmable exponent
    Non-Volatile Memory: All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
    Normal Mode Rejection: 64 dB at 50/60 Hz
    Operating Temperature Range: -40 to 75°C.
    Storage Temperature Range: -40 to 75°C.
    Relative Humidity: 0 to 90% non-condensing
    Connections: Screw terminals accept 12 to 22 AWG wire
    Enclosure: NEMA 4X, IP65 plastic field enclosure. Color: grey. Material: Polycarbonate with UV Stabilizer. Three ¾” NPT threaded conduit openings. Two ¾” NPT plastic conduit plugs, with 1.29″ wrenching flats and a screwdriver slot, are included.
    Mounting: May be mounted directly to conduit. Two slotted flanges for wall mounting or NPS 1½” to 2½” or DN 40 to 65 mm pipe mounting.
    Overall Dimensions:5.67″ x 5.25″ x 4.18″ (W x H x D) (144 mm x 133 mm x 106 mm)
    Weight: 1.65 lbs (26.4 oz, 0.75 kg)
    Warranty: 3 years parts and labor

    Input

    Input range: 4-20 mA
    Accuracy: ±0.03% of calibrated span ±1 count, square root & programmable exponent accuracy range: 10-100% of calibrated span.
    Temperature Drift: 50 PPM/°C
    Decimal Point: User selectable decimal point
    Calibration Range: An error message will appear if input 1 and input 2 signals are too close together. Input Range: 4-20 mA. Minimum Span Input 1 & Input 2: 0.10 mA
    Maximum Voltage Drop: 3.0 VDC @ 20 mA without loop-powered backlight. 6.0 VDC @ 20 mA with loop-powered backlight
    Equivalent Resistance: 150 Ω @ 20 mA without loop-powered backlight. 300 Ω @ 20 mA with loop-powered backlight
    Input Overload: Over current protection to 2 A max.
    HART Transparency: Analog input will not interfere with existing HART communications on the wired 4-20 mA signal
    Externally Powered Backlight:

    Voltage RangeMaximum Power
    9-30 VDC9 VDC12 VDC24 VDC30 VDC
     0.2 W0.25 W0.5 W0.75W

    Open Collector Output

    Rating: Isolated open collector, 30 VDC @ 150 mA max.
    Alarm Output: Assign as rate alarm or total alarm trip point.
    Deadband: 0-100% FS, user selectable
    Acknowledge: Front panel ENTER button resets output and screen indication.
    Pulse Output K-Factor: K-factor programmable from 0.0001 to 99999.
    Pulse Output Frequency: 2, 4, 8, 16, 32, 64, 128 Hz. Minimum pulse width: 3.9 ms @ 128 Hz. Maximum pulse width: 250 ms @ 2 Hz. Factory default pulse width: 31 ms @ 16 Hz

    Rate/Totalizer

    Rate Display: 0 to 99,999 leading zero blanking
    Total Display: 0 to 9,999,999 leading zero blanking
    Total Decimal Point: Up to six decimal places or none: d.dddddd, d.ddddd, d.dddd d.ddd, d.dd, d.d, or ddddddd
    Lower Display Configuration: Can be programmed to display total, tag name/engineering units, or to alternate between them.
    Totalizer: Calculates total based on rate, time base of second, minute, hour, or day, and field programmable multiplier; stored in
    non-volatile memory upon power loss.
    Totalizer Reset: Via front panel SafeTouch® button, time delay, external contact closure, or protected
    Total Conversion Factor: 0.000001 to 9,999,999
    Totalizer Rollover: Display rolls over when display exceeds 9,999,999. Relay status reflects the displayed value.
    Total Reset Delay: Programmable from 0 to 99,999 seconds

    Connections

    Dimensions

    Data Sheet: LDS6720_1 Data Sheets
    Instruction Manual:LIM6720_0 Instruction Manuals
