Precision Digital PD662 Survivor NEMA 4X Loop-Powered Process Meter

From: $297

Part Number: PD662 Categories: , , Tags: ,
  • Free Shipping
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm or Email [email protected]

    FREE Domestic AND SEA Shipping!

    Most orders RM500/USD120 or more ship SEA for FREE!

    • Delivery within the Southeast Asia only.
    • Hazardous items excluded.
    • Extremely heavy or bulky items excluded.
    • Distributors, Resellers and OEMs excluded.
    • Contact us for shipping charge for orders < RM500/USD120
    close-link
  • Free Technical Support
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm

    Setup, Configuration and Technical Support of our Products are FREE.

    We help to check your faulty Instruments too, fill in the form here

    Free phone and email tech support continues as long as you own the product. Click here for contact information.

    close-link
  • Request a Quote
    close-link

    Inputs: Current (4-20 mA)
    Display: 0.6″ High, 3 1/2 + Digits LCD
    Power: Loop-Powered
    Backlight: Standard
    Approvals: CE, CSA (Electric Safety)
    Warranty: 2 years

    $362

    Inputs: Current (4-20 mA)
    Display: 0.6″ High, 3 1/2 + Digits LCD
    Power: Loop-Powered
    Backlight: None
    Approvals: CE, CSA (Electric Safety)
    Warranty: 2 years

    $297

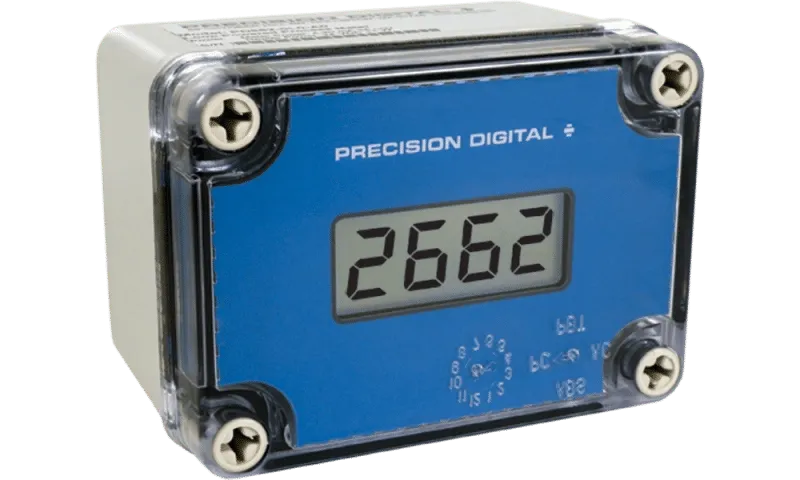

    The PD662 NEMA 4X, CSA Certified loop-powered meter is perfect for applications where a simple, inexpensive display is required and AC power is not available. The PD662 derives all its power from the 4-20 mA loop, including its optional backlight feature. It can be easily scaled in the field using four push buttons; with or without applying an actual calibration signal. The PD662’s display will read up to 2999; we call this 3½+ digits! The PD662 is housed in a rugged NEMA 4X enclosure and is provided with one ½” NPT pipe conduit hole.

    Features

    • NEMA 4X, IP66 Loop-Powered Field-Mount Process Meter
    • 4-20 mA Input
    • 0.6″ (15.2 mm) 3½+ Digits LCD Display; -1999 to 2999
    • 1.7 Volt Drop (3.7 Volt Drop with Backlight)
    • HART® Protocol Transparent
    • Loop-Powered Backlight Option
    • CSA Certified for -40 to 75°C (-40 to 167°F) Operation
    • Four Internal Buttons for Easy Field Scaling
    • Max/Min Display
    • Programmable Noise Filter
    • 32-Point and Square Root Linearization Functions
    • Plastic NEMA 4X, IP66 Enclosure
    • Conformal Coated PCBs for Dust and Humidity Protection
    • One ½” Conduit Hole in Rear of Enclosure
    • Pipe & Panel Mounting Kits
    • Stainless Steel Tag Available

    General

    Display: 0.6″ (15.2 mm) LCD, 3½+ digits; -1999 to 2999
    Display Update Rate: 2 Updates/Second
    Over-Range: Display Flashes 2999
    Under-Range: Display Flashes -1999
    Programming Method: 4 Front Panel Pushbuttons
    Noise Filter: Programmable HI, LOW, or OFF
    Recalibration: Recalibration is recommended at least every 12 months.
    Max/Min Display: Max/Min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
    Non-Volatile Memory: All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
    Normal Mode Rejection: 64 dB at 50/60 Hz
    Environmental: Operating Temperature for CSA Certification: -40 to 75°C.
    Functional Temperature Range: -40 to 85°C. Storage Temp.: -40 to 85°C.
    Relative Humidity: 0 to 90% non-condensing. Printed circuit boards are conformally coated.
    Connections: Removable screw terminals accept 12 to 22 AWG
    Tightening Torque: Screw terminal connectors: 4.5 lb-in (0.5 Nm)
    Enclosure: Impact-resistant polyester plastic, body color gray, clear cover with blue faceplate; NEMA 4X, IP66; ½” conduit hole provided at base
    Weight: 9.3 oz (264 g)
    Overall Dimensions: 3.15″ x 4.33″ x 2.76″ (80 mm x 110 mm x 70 mm) (W x H x D)
    Warranty: 3 years parts & labor

    Input

    Input: 4-20 mA
    Accuracy: ±1 count
    Temperature Drift: 50 PPM/°C from -40 to 85°C ambient
    Decimal Point: User selectable decimal point
    Minimum Span: Input 1 & Input 2: 0.40 mA
    Maximum Voltage Drop: 1.7 VDC @ 20 mA; 3.7 VDC @ 20 mA with backlight option.
    Equivalent Resistance: 85 Ω @ 20 mA without backlight; 185 Ω @ 20 mA with backlight
    Loop-Powered Backlight Option: Factory installed only with field wiring option. Powered directly from the 4-20 mA loop, no batteries required. The display brightness will increase as the input signal current increases.
    HART Transparency: Analog input will not interfere with existing HART communications on the wired 4-20 mA signal
    Heater OptionPower: 24 VDC, 11 W Maximum.
    Required Switch & Fuse: A CSA Approved fuse rated min 30 VDC, 1 A, T and a readily accessible switch or a circuit breaker shall be provided to facilitate the disconnection of power to the heater.
    Environmental: Operating Temperature for CSA Certification: -55 to 75°C.
    Functional Operation: -55 to 85°C. Storage Temperature: -55 to 85°C.
    Relative Humidity: 0 to 90% non-condensing.
    Temperature Cutoff: Internal 104°C thermal cutoff for over temperature protection.

    CSA Certification

    CSA Certified: U.S. & Canada. 2252 05 — Process Control Equipment. 2252 85 — Process Control Equipment, U.S. Standards.
    CSA File Number: 157123
    CSA Applicable Requirements: CAN/CSA C22.2 No. 61010-1-04 Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use – Part 1: General Requirements UL 61010-1:2004, 2nd Edition Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use – Part 1: General Requirements.

    Connections

    Wiring

    The two wire power/signal connection is made on the back of the PD662 on the three position removable terminal block. Follow instructions printed on the unit for two wire loop-powered connections with or without backlight.

    PD662 Input Connections with Backlight

    PD662 Input Connections without Backlight

    Mounting Dimensions

    Data Sheet: Precision Digital PD662 Data Sheet

    Instruction Manual: Precision Digital PD662 Manual
