Precision Digital PD6400 ProVu High Voltage & Current Digital Panel Meter

Last Updated: 23/02/2020
Precision Digital Logo

Precision Digital PD6400-7H3

$883

Usually ships in 1 to 2 weeks

Part Number: PD6400-7H3  Categories: , Tags: ,
  • Free Shipping
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm or Email [email protected]

    FREE Domestic AND SEA Shipping!

    Most orders RM500/USD120 or more ship SEA for FREE!

    • Delivery within the Southeast Asia only.
    • Hazardous items excluded.
    • Extremely heavy or bulky items excluded.
    • Distributors, Resellers and OEMs excluded.
    • Contact us for shipping charge for orders < RM500/USD120
    close-link
  • Free Technical Support
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm

    Setup, Configuration and Technical Support of our Products are FREE.

    We help to check your faulty Instruments too, fill in the form here

    Free phone and email tech support continues as long as you own the product. Click here for contact information.

    close-link
  • Request a Quote
    close-link

    SKU: PD6400-7H3
    Product Type: 1/8 DIN High Voltage & Current Digital Panel Meter
    Input: Dual Inputs, High Voltage (0-300 V), High Current (0-5 A)
    Output Options: 4-20 mA Output
    Power: 12-24 VDC/VAC
    Approvals: CE, UL/C-UL
    Transmitter Power: 24 VDC @ 40 mA
    Display Category: LED, Dual Line, Sunlight Readable
    Display: SunBright, 0.6″, Dual Line, 6 Digits, Red LED
    Warranty: 3 years
    Product Series: ProVu
    Product Family: PD6400
    Product category: Digital Panel Meters
    Product Application: High Current, High Voltage

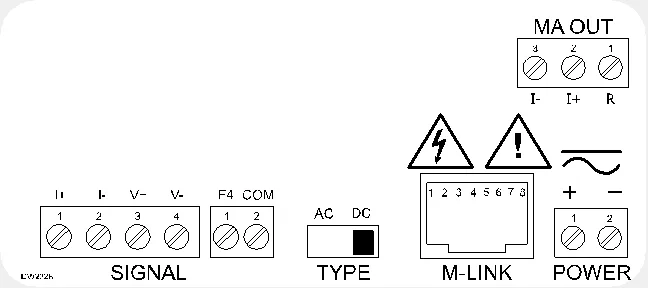

    Wiring Diagram:

    The PD6400 is a member of the ProVu series of 1/8 DIN digital panel meters that accepts a high voltage (0-300 VAC/VDC) and high current (0-5 AAC/ADC) input simultaneously. It is ideal for measuring direct voltage and current or the output from voltage shunts and current transformers. It displays the input on a dual-line, 6-digit display that is available with optional Sunbright® sunlight readable LEDs. The high voltage and current meter can be customized to display the voltage on one line and the current on the other or to display the apparent power by multiplying the two inputs. Like all ProVu meters, the PD6400 AC/DC voltage and current meter includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options. ProVu meters can be equipped with up to four internal relays, a 4-20 mA output and Modbus® RTU serial communications.

    General

    Display: Upper display: 0.60″ (15 mm) high. Lower display: 0.46″ (12 mm) high. Both are 6 digits (-99999 to 999999), red LEDs.
    Display Intensity: Eight intensity levels
    Display Update Rate: 5/second (200 ms)
    Overrange: Display flashes 999999
    Underrange: Display flashes -99999
    Display Assignment: The main (Big) and secondary (Little) displays may be assigned to process values for Channels A (Ch-A, current), V (Ch-V, voltage), or P (Ch-P, apparent power); toggle between (Ch-A & Ch-V, Ch-A & Ch-P, Ch-V & Ch-P, and Ch-A, Ch-V, & Ch-P); relay set points; max and/or min values for CH-A, Ch-V, or Ch-P; CH-A and units; Ch-V and units; Ch-P and units; or Modbus input. The lower display may also be set to show engineering units or be set to off, with no display.
    Front Panel: NEMA 4X, IP65
    Programming Methods: Four front panel buttons, digital inputs, PC and MeterView Pro software, Modbus registers.
    F4 Digital Input Contacts: 3.3 VDC on contact. Connect normally open contacts across F4 to COM.
    F4 Digital Input Logic Levels: Logic High: 3 to 5 VDC
    Logic Low: 0 to 1.25 VDC
    table Noise filter: Programmable from 2 to 199 (0 will disable filter)
    Filter Bypass: Programmable from 0.1 to 99.9% of calibrated span
    Recalibration: Calibrated at the factory. Recalibration is recommended at least every 12 months.
    Max/Min Display: Max / min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
    Password: Three programmable passwords restrict modification of programmed settings.
    Non-Volatile Memory: All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.
    Input Power Options: 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max or 12-24 VDC ± 10%, 15 W max. Powered over USB for configuration only.
    Fuse: Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse.
    Normal Mode Rejection: Greater than 60 dB at 50/60 Hz
    Isolation: 500 V AC/DC potential allowed between voltage and current input channels. Channels isolated by 3 MΩ impedance 4 kV input/output-to-power line 500 V input-to-output or output-to-P+ supply.
    Overvoltage Category: Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.
    Environmental:
       Operating temperature range: -40 to 65°C
       Storage temperature range: -40 to 85°C
       Relative humidity: 0 to 90% non-condensing
    Connections: Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters.
    Enclosure: 1/8 DIN, high impact plastic, UL 94V-0, color: black
    Mounting: 1/8 DIN panel cutout required: 3.622″ x 1.772″ (92 mm x 45 mm). Two panel mounting bracket assemblies are provided.
    Tightening Torque: Screw terminal connectors: 5 lb-in (0.56 Nm)
    Dimensions: 4.68″ x 2.45″ x 5.64″ (119 mm x 62 mm x 143 mm) (W x H x D)
    Weight: 9.5 oz (269 g)
    UL File Number: UL & C-UL Listed. E160849; 508 Industrial Control Equipment.
    Warranty: 3 years parts & labor
    USB Connection: Compatibility: USB 2.0 Standard, Compliant
       Connector Type: Micro-B receptacle
       Cable: USB A Male to Micro-B Cable
       Driver: Windows 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit,
       Vista 32/64-Bit, Windows 7 32/64-Bit, Windows 10 32/64-Bit
       Power: USB Port

    Voltage and Current Inputs

    High Voltage Input: One high voltage input (Channel V) 0-300 VDC or VAC; Switch Selectable, Modbus PV (Slave)
    High Current Input: One high current input (Channel A) 0-5 AAC or ADC; Switch Selectable, Modbus PV (Slave)
    Channels: Channel A, Channel V, Channel P (Math Channel for Apparent Power)
    AC/DC Selection: Switch selectable for AC or DC inputs. Channels A and V share AC/DC selection.
    Apparent Power Math: Apparent power P calculated as P = ((A * V) + C) * F
    Programmable Constants: Constant C (Adder): -99.999 to 999.999, default: 0.000. Constant F (Factor): 0.001 to 999.999, default: 1.000.
    Accuracy: ADC: 0.03% Full Scale ±1 count,
    AAC: 0.1% Full Scale ±1 count,
    VDC: 0.05% Full Scale ±1 count,
    ±1 count, square root & programmable exponent accuracy range: 10-100% of calibrated span
    Temperature Drift: 0.005% of calibrated span/°C max from 0 to 65°C ambient
    Signal Input Conditioning: Linear, square root, programmable exponent, or round horizontal tank volume calculation.
    Multi-Point Linearization: 2 to 32 points for Channel A and V
    Low-Flow Cutoff: 0-999999 (0 disables cutoff function)
    Decimal Point: Up to five decimal places or none: d.ddddd, dd.dddd,ddd.ddd, dddd.dd, ddddd.d, or dddddd.
    Calibration Range:

    Input ChannelInput RangeMinimum Span Input 1 & Input 2
    A±0-5 ADC/0-5 AAC±0.005 ADC/0.010 AAC
    V±0-300 VDC/0-300 VAC±0.1 VDC/0.3 VAC

    Note: An error message will appear if the input 1 and input 2 signals are too close together.
    Input Impedance: Voltage Input: greater than 3 MΩ. Current Input: 16 mΩ (0.016 Ω)
    Input Overload: Voltage input protected up to 500 VDC. Current input protected up to 10 A by a 10A/300V fast acting non-resettable fuse. Fuse is NOT resettable after a fault; unit must be factory reconditioned.
    F4 Digital Input Contacts: 3.3 VDC on contact. Connect normally open contacts across F4 to COM.
    F4 Digital Input Logic Levels: Logic High: 3 to 5 VDC Logic Low: 0 to 1.25 VDC

    Relays

    Rating: 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 watts) @ 125/250 VAC for inductive loads such as contactors, solenoids, etc.
    Noise Suppression: Noise suppression is recommended for each relay contact switching inductive loads.
    Relay Assignment: Each relay independently assigned to Ch-A, Ch-V, CH-P, or Modbus
    Deadband: 0-100% of span, user programmable
    High or Low Alarm: User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turned off).
    Relay Operation: automatic (non-latching), latching (requires manual acknowledge), sampling (based on time), pump alternation control (2 to 8 relays), Off (disable unused relays and enable interlock feature, manual on/off control mode).
    Relay Reset: User selectable via front panel buttons or digital inputs.
       1. Automatic reset only (non-latching), when input passes the reset point.
       2. Automatic + manual reset at any time (non-latching).
       3. Manual reset only, at any time (latching).
       4. Manual reset only after alarm condition has cleared (latching).
    Note: Front panel button or digital input may be assigned to acknowledge relays programmed for manual reset.
    Time Delay: 0 to 999.9 seconds, on & off relay time delays. Programmable and independent for each relay.
    Fail-Safe Operation: Programmable and independent for each relay.
    Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.
    Auto Initialization: When power is applied to the meter, relays will reflect the state of the input to the meter.
    Break Condition Operation: Relay condition when sensor break detected. Programmable independently for each relay as On, Off, or Ignore (maintain last condition).

    Modbus® RTU Serial Communications

    Meter Address/Slave ID: 1 – 247
    Baud Rate: 300 – 19,200 bps
    Transmit Time Delay: Programmable between 0 and 199 ms
    Data: 8 bit (1 start bit, 1 or 2 stop bits)
    Parity: Even, odd, or none with 1 or 2 stop bits
    Byte-to-Byte Timeout: 0.01 – 2.54 seconds
    Turn Around Delay: Less than 2 ms (fixed)
    Note: Refer to the ProVu Modbus Register Tables for details.

    Isolated 4-20 mA Transmitter Output

    Output Source: Process channel A, V, or P, max or min for channel A, V, or highest or lowest max or min of A and V, set points 1-8, Modbus input, or manual control mode
    Scaling Range: 1.000 to 23.000 mA for any display range
    Calibration: Factory calibrated: 4.000 to 20.000 = 4-20 mA output
    Analog Output Programming: 23.000 mA maximum for all parameters:
    Overrange, underrange, max, min, and break
    Accuracy: ± 0.1% of span ± 0.004 mA
    Temperature Drift: 0.4 µA/°C max from 0 to 65°C ambient, 0.8 µA/°C max from -40 to 0°C ambient
    Note: Analog output drift is separate from input drift.
    Isolated Transmitter Power Supply: Terminals I+ & R: 24 VDC ± 10%. Isolated from the input at >500 V. May be used to power the 4-20 mA output or other devices. All models rated @ 40 mA max.
    External Loop Power Supply: 35 VDC maximum
    Output Loop Resistance:

    Power supplyMinimumMaximum
    24 VDC10Ω700Ω
    35 VDC (external)100Ω1200Ω

    Mounting Dimensions

    ProVuDimensions



    Notes:

    1. Panel cutout required: 1.772″ x 3.622″ (45mm x 92mm)
    2. Panel thickness: 0.040 – 0.250″ (1.0mm – 6.4mm)
    3. Mounting brackets lock in place for easy mounting
    4. Clearance: Allow 6″ (152 mm) behind the panel

    Applications

    The PD6400 ProVu® can be used to display application data for voltage, current, or both. Each Channel, Voltage or Current, can be scaled independently. The following examples show just a few of the PD6400’s application capabilities using generators and transformers. Each example is accompanied by a wiring diagram that shows proper switch position for the meter.

    Voltage Measurement for a Generator Driving a Load

    Voltage & Current Measurement for a Transformer Driving a Load

    PD6400_Voltage_and_Current_input

    Current Measurement for a Lighting System

    PD6400_Current_input

    Connections

    PD6400_Connections

    MeterView® Pro Software

    MeterView Pro VideoMeterView® Pro software is designed for use with ProVu, ProtEX-MAX, or Helios Series meters and allows users to remotely program, monitor, and datalog using a PC. Remote programming allows for all available meter settings to be programmed through an easy, user-friendly interface. The data acquisition feature allows the user to gather readings from a meter at user-selected intervals and generate charts using common tools like Microsoft® Excel. A linearization setup function is also included. With this utility the user can configure up to 32 linearization points and upload them to the meter. All configuration data can be saved to a file for future use.
    This software is accessible via the onboard USB connection on all Helios large display meters, ProVu panel meters, and ProVu-based ProtEX-MAX explosion-proof meters produced since 6 September 2016 (firmware version 4.0 or higher). In order for meters produced prior to 6 September 2016 (firmware version 3.1 or lower) to establish digital communications with a PC, a serial communications adapter is required. For an RS-232 connection, use a PDA1232adapter.
    To determine the software version of a meter:

    1. Go to the Diagnostics menu () and press Enter button.
    2. Press Up arrow button and scroll to Information menu (Info).
    3. Press Enter to access the software number (), version (), and serial number () information. Write down the information as it is displayed. Continue pressing Enter until all the information is displayed.
    4. The meter returns to Run Mode after displaying all the settings.

                                                                                    Monitor and Datalog

    monitor and data logging
    monitor and data logging

    Setup

    Setup
    Setup

    Programming

    programming

    Relays

    Relays



    Data Sheet:LDS6400_1 Datasheets

    Instruction Manual:LIM6400_2 Instruction Manuals
