Precision Digital PD6310 ProVu Pulse Input Batch Controller

Last Updates: 29/08/2020

Precision Digital PD6310-6H5

$793

Usually ships in 1 to 2 weeks

Part Number: PD6310-6H5  Categories: , Tags: ,
  • Email Us: sales@celectric.com.my
  • WhatsApp Us: +60165519084
  • Model: PD6310-6H5
    Product Type: 1/8 DIN Batch Controller Digital Panel Meter
    Input: Pulse
    Output Options: 2 Relays & 4-20 mA Output
    Power: 85-265 VAC, 90-265 VDC
    Approvals: CE, UL/C-UL
    Transmitter Power: 5, 10 or 24 VDC @ 200 mA + 24 VDC @ 40 mA
    Display Category: LED, Dual Line, Sunlight Readable
    Display: SunBright, 0.6″, Dual Line, 6 Digits, Red LED
    Warranty: 3 years
    Product Series: ProVu
    Product Family: PD6310
    Product category: Digital Panel Meters
    Product Application: Batch Controller

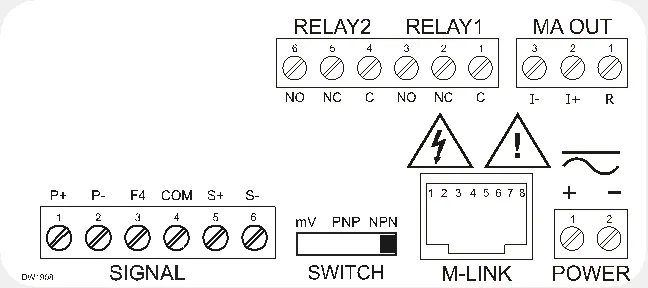

    Wiring Diagram:

    Data Sheet: LDS6310 Datasheets
    Instruction Manual: LIM6310 Instruction Manuals

    Mounting Dimensions




    Notes:

    1. Panel cutout required: 1.772″ x 3.622″ (45mm x 92mm)
    2. Panel thickness: 0.040 – 0.250″ (1.0mm – 6.4mm)
    3. Mounting brackets lock in place for easy mounting
    4. Clearance: Allow 6″ (152 mm) behind the panel

    Applications

    Batch Control

    A ProVu NTEP® Certified batch controller can be programmed for a wide variety of applications. Setup is easy for single or multi-stage batching. Automatic overrun correction keeps the batch size accurate, even over time and with system wear. It can record grand total, or non-resettable grand total with a time base of seconds, minutes, hours or days. The user can program a conversion factor, and configure a non-resettable grand total, and password protection.

    Single and Multi-Stage Batching

    The ProVu PD6310-WM can be used as a single or multi-stage batch controller. Relays assigned to the total act as batch control relays, with additional relays beyond the first including a preclose value. The preclose deactivates the relay before the batch is finished, to allow slower fill rates and a more accurate batch finish. With expansion module relays, up to eight-stage batching is possible. Each additional stage batching relay has an individually programmable preclose amount.

    Single Stage Batch Control

    Multi-Stage Batch

    Manual Multi-Stage Batch Control Operation

    System Setup
    1. Both valves are closed with an empty barrel in place. The batched total is displayed in the upper display, the preset is selected for the lower display.
    Batch Start
    2. The START button is pressed, with both valves open. The barrel begins to fill.
    Preclose Valve
    3. When the batch total reaches a value of 50.00 (Preset [55.00] Preclose [5.00]) the full-flow valve closes. The fill rate of the tank slows as a result.
    Completed Batch
    4. When the batch total equals the preset amount, the restricted-flow valve closes. The barrel is now full. If some overrun occurs, the next batch will adjust for this offset amount to maintain accuracy.
    Change Preset
    5. After placing a new, empty barrel, a new preset fill amount may be selected with the Batch key, while the process is stopped.
    Begin New Batch
    6. Press the START key and a new batch will begin. With both valves open, the process continues.
    Pause/Stop
    7. At any time, the STOP button may be pressed, once to Pause the process, or twice to cancel the batch, which stops the process.

    Connections

    MeterView® Pro Software

    MeterView® Pro software is designed for use with ProVu, ProtEX-MAX, or Helios Series meters and allows users to remotely program, monitor, and datalog using a PC. Remote programming allows for all available meter settings to be programmed through an easy, user-friendly interface. The data acquisition feature allows the user to gather readings from a meter at user-selected intervals and generate charts using common tools like Microsoft® Excel. A linearization setup function is also included. With this utility the user can configure up to 32 linearization points and upload them to the meter. All configuration data can be saved to a file for future use.
    This software is accessible via the onboard USB connection on all Helios large display meters, ProVu panel meters, and ProVu-based ProtEX-MAX explosion-proof meters produced since 6 September 2016 (firmware version 4.0 or higher). In order for meters produced prior to 6 September 2016 (firmware version 3.1 or lower) to establish digital communications with a PC, a serial communications adapter is required. For an RS-232 connection, use a PDA1232adapter.
    To determine the software version of a meter:

    1. Go to the Diagnostics menu () and press Enter button.
    2. Press Up arrow button and scroll to Information menu (Info).
    3. Press Enter to access the software number (), version (), and serial number () information. Write down the information as it is displayed. Continue pressing Enter until all the information is displayed.
    4. The meter returns to Run Mode after displaying all the settings.

    Monitor and Datalog

    monitor and data logging
    monitor and data logging

    Setup

    Setup
    Setup

    Programming

    programming

    Relays

    Relays
