Precision Digital PD6100 ProVu Strain Gauge, Load Cell & mV Digital Panel Meter

Last Updated: 27/05/2020
Precision Digital Logo

Precision Digital PD6100-7H3

$854

Usually ships in 1 to 2 weeks

Part Number: PD6100-7H3 Categories: , Tags: ,
  • Free Shipping
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm or Email [email protected]

    FREE Domestic AND SEA Shipping!

    Most orders RM500/USD120 or more ship SEA for FREE!

    • Delivery within the Southeast Asia only.
    • Hazardous items excluded.
    • Extremely heavy or bulky items excluded.
    • Distributors, Resellers and OEMs excluded.
    • Contact us for shipping charge for orders < RM500/USD120
    close-link
  • Free Technical Support
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm

    Setup, Configuration and Technical Support of our Products are FREE.

    We help to check your faulty Instruments too, fill in the form here

    Free phone and email tech support continues as long as you own the product. Click here for contact information.

    close-link
  • SKU: PD6100-7H3
    Product Type: 1/8 DIN Strain Gauge / Load Cell Digital Panel Meter
    Input: Strain Gauge, Millivolts
    Output Options: 4-20 mA Output
    Power: 12-24 VDC/VAC
    Approvals: CE, UL/C-UL
    Transmitter Power: 5 or 10 VDC @ 350 mA + 24 VDC @ 40 mA
    Display Category: LED, Dual Line, Sunlight Readable
    Display: SunBright, 0.6″, Dual Line, 6 Digits, Red LED
    Warranty: 3 years
    Product Series: ProVu
    Product Family: PD6100
    Product category: Digital Panel Meters
    Product Application: Level, Strain, Weight

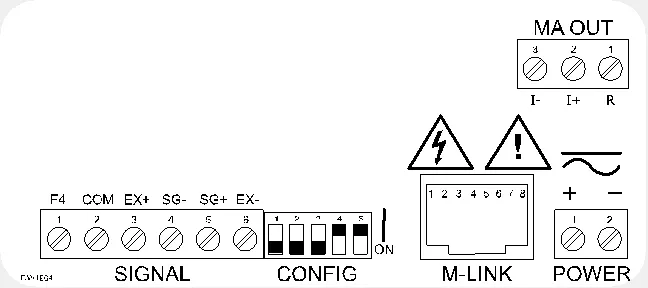

    Wiring Diagram:

    The PD6100 is a member of the ProVu series of 1/8 DIN digital panel meters that accepts strain gauge & load cell inputs and mV signals up to 300 mV (unipolar) and ± 250 mV (bipolar) for weight indication and force measurement applications. The PD6100’s dual-line display and powerful dual-scale capability allows the measurement to be displayed in two different units of measure; gallons (volume) could be displayed on the upper line while pounds (weight) is displayed on the lower line, for example. Another use for the PD6100’s dual-line display is to simply show the units of measure on the bottom line. The PD6100 stain gauge meter includes a 5 or 10 VDC power supply to drive the sensors and can be equipped with up to four internal relays and one 4-20 mA output.

    General

    Display: Upper display: 0.60″ (15 mm) high. Lower display: 0.46″ (12 mm) high. Both are 6 digits (-99999 to 999999), red LEDs.
    Display Intensity: Eight intensity levels
    Display Update Rate: 5/second (200 ms)
    Overrange: Display flashes 999999
    Underrange: Display flashes -99999
    Display Assignment: The displays may be assigned to PV1, PV2, PCT, max & min, set points, PV & units, units (lower display only), net & gross weight, Modbus input, and display millivolts.
    Units: lb, kg, ounce, gram, ton, metric ton (tonne), custom units.
    Front Panel: NEMA 4X, IP65
    Programming Methods: Four front panel buttons, digital inputs, PC and MeterView Pro software, Modbus registers
    F4 Digital Input Contacts: 3.3 VDC on contact. Connect normally open contacts across F4 to COM.
    F4 Digital Input Logic Levels: Logic High: 3 to 5 VDC
    Logic Low: 0 to 1.25 VDC
    Noise filter: Programmable from 2 to 199 (0 will disable filter)
    Filter Bypass: Programmable from 0.1 to 99.9% of calibrated span
    Rounding: Select 1, 2, 5, 10, 20, 50, or 100 (e.g. rounding = 10, value = 123.45, display = 123.50).
    Recalibration: All ranges are calibrated at the factory. Recalibration is recommended at least every 12 months.
    Max/Min Display: Max/min readings reached by the process are stored until reset by the user or until power to the meter is cycled.
    Password: Three programmable passwords restrict modification of programmed settings.
    Non-Volatile Memory: All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.
    Power Options: 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max, or
    optional model with 12-24 VDC ±10%, 15 W max.
    Fuse: Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse.
    Isolated Sensor Power Supply:
    Terminals Ex+ & Ex-: 10 VDC or 5 VDC ± 10%. Rated @ 350 mA max.
    Note: Do not use 24 VDC to power strain gauge bridge
    Normal Mode Rejection: Greater than 60 dB at 50/60 Hz
    Isolation: 4 kV input/output-to-power line. 500 V input-to-output (powered by external supply).
    Overvoltage Category: Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.
    Environmental: Operating temperature range: -40 to 65°C
    Storage temperature range: -40 to 85°C
    Relative humidity: 0 to 90% non-condensing
    Connections: Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters.
    Enclosure: 1/8 DIN, high impact plastic, UL 94V-0, color: black
    Mounting: 1/8 DIN panel cutout required: 3.622″ x 1.772″
    (92 mm x 45 mm). Two panel mounting bracket assemblies are provided.
    Tightening Torque: Screw terminal connectors: 5 lb-in (0.56 Nm)
    Dimensions: 4.68″ x 2.45″ x 5.64″ (119 mm x 62 mm x 143 mm) (W x H x D)
    Weight: 9.5 oz (269 g)
    UL File Number: UL & c-UL Listed. E160849; 508 Industrial Control Equipment.
    Warranty: 3 years parts & labor
    USB Connection: Compatibility: USB 2.0 Standard, Compliant Connector Type: Micro-B receptacle
       Cable: USB A Male to Micro-B Cable
       Driver: Windows 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit, Vista 32/64-Bit, Windows 7 32/64-Bit,    Windows 10 32/64-Bit
       Power: USB Port

    Strain Gauge Input

    Inputs: Field selectable: 0-15, 0-30, 0-150, 0-300 mV, ±15, ±25, ±150, ±250 mV, or Modbus PV (Slave)
    Accuracy: ±0.03% of calibrated span ±1 count
    Minimum Load Resistance: 28 Ω @ 5 V or 10 V
    Maximum Excitation Current: 350 mA @ 5 V or 10 V
    Temperature Drift: 0.002% of calibrated span/°C max from 0 to 65°C ambient, 0.005% of calibrated span/°C max from -30 to 0°C ambient
    Function: Linear with multi-point linearization
    Low-Flow Cutoff: 0-999999 (0 disables cutoff function)
    Decimal Point: Up to five decimal places or none: d.ddddd, dd.dddd, ddd.ddd, dddd.dd, ddddd.d, or dddddd.
    Calibration Range:

    Input RangeMinimum Span Input 1 & Input 2
    15 mV0.2 mV
    25 mV, 30 mV0.4 mV
    150 mV2.0 mV
    250 mV, 300 mV4.0 mV

    An Error message will appear if the input 1 and input 2 signals are too close together.
    Input Impedance: Voltage ranges: greater than 1 MΩ.

    Relays

    Rating: 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 watts) @ 125/250 VAC for inductive loads such as contactors, solenoids, etc.
    Noise Suppression: Noise suppression is recommended for each relay contact switching inductive loads.
    Deadband: 0-100% of span, user programmable
    High or Low Alarm: User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turned off).
    Relay Operation: Automatic (non-latching), latching (requires manual acknowledge), sampling (based on time), pump alternation control (2 to 8 relays), Off (disable unused relays and enable interlock feature, manual on/off control mode).
    Relay Reset: User selectable via front panel buttons or digital inputs.
       1. Automatic reset only (non-latching), when input passes the reset point.
       2. Automatic + manual reset at any time (non-latching).
       3. Manual reset only, at any time (latching).
       4. Manual reset only after alarm condition has cleared (latching).
    Note: Front panel button or digital input may be assigned to acknowledge relays programmed for manual reset.
    Time Delay: 0 to 999.9 seconds, on & off relay time delays. Programmable and independent for each relay.
    Fail-Safe Operation: Programmable and independent for each relay.
    Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.
    Auto Initialization: When power is applied to the meter, relays will reflect the state of the input to the meter.

    Serial Communications

    Protocol: Modbus® RTU (Slave Only)
    Meter Address/Slave ID: 1 – 247
    Baud Rate: 300 – 19,200 bps
    Transmit Time Delay: Programmable between 0 and 199 ms or transmitter always on for RS-422 communication
    Data: 8 bit (1 start bit, 1 or 2 stop bits)
    Parity: Even, odd, or none with 1 or 2 stop bits
    Byte-to-Byte Timeout: 0.01 – 2.54 seconds
    Turn Around Delay: Less than 2 ms (fixed)
    Note: Refer to the ProVu Modbus Register Tables for details

    Isolated 4-20 mA Transmitter Output

    Output Source: Process variable (PV), max, min, set points 1-8, manual control setting, or Modbus input
    Scaling Range: 1.000 to 23.000 mA for any display range
    Calibration: Factory calibrated: 4.000 to 20.000 = 4-20 mA output
    Analog Output Programming: 23.000 mA maximum for all parameters:
    Overrange, underrange, max, min, and break
    Accuracy: ± 0.1% of span ± 0.004 mA
    Temperature Drift: 0.4 µA/°C max from 0 to 65°C ambient, 0.8 µA/°C max from -40 to 0°C ambient
    Note: Analog output drift is separate from input drift.
    Isolated Transmitter Power Supply: Terminals I+ & R: 24 VDC ± 10%. Isolated from the input at >500 V. May be used to power the 4-20 mA output or other devices. All models rated @ 40 mA max.

    Power supplyMinimumMaximum
    24 VDC10Ω700Ω
    35 VDC (external)100Ω1200Ω

    Digital I/O Expansion Module

    Channels: 4 digital inputs & 4 digital outputs per module
    System: Up to 2 modules for a total of 8 inputs & 8 outputs
    Digital Input Logic: High: 3 to 5 VDC
    Low: 0 to 1.25 VDC
    Digital Output Logic: High: 3.1 to 3.3 VDC
    Low: 0 to 0.4 VDC
    Source Current: 10 mA maximum
    Sink Current: 1.5 mA minimum
    +5 V Terminal: To be used as pull-up for digital inputs only

    4-Relay Expansion Module

    Relays: (4) Form A (SPST) rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (approx. 50 watts) @ 125/250 VAC for inductive loads

    Application

    Load Cell

    A typical application for load cells is in a tank weighing operation. In the following example, this three-legged tank has a load cell under each leg. The three load cells are wired locally in parallel within a junction box. The combined signals are then connected to the PD6100. During field calibration, the weight of the empty tank (zero point) and the full tank weight (full scale) are programmed into the meter. Over time, the tare feature on the PD6100 can account for obstacles like sludge buildup on the bottom of the tank when empty.



    Connections



    Mounting Dimensions


    Notes:

    1. Panel cutout required: 1.772″ x 3.622″ (45mm x 92mm)
    2. Panel thickness: 0.040 – 0.250″ (1.0mm – 6.4mm)
    3. Mounting brackets lock in place for easy mounting
    4. Clearance: Allow 6″ (152 mm) behind the panel

    MeterView® Pro Software

    MeterView Pro VideoMeterView® Pro software is designed for use with ProVu, ProtEX-MAX, or Helios Series meters and allows users to remotely program, monitor, and datalog using a PC. Remote programming allows for all available meter settings to be programmed through an easy, user-friendly interface. The data acquisition feature allows the user to gather readings from a meter at user-selected intervals and generate charts using common tools like Microsoft® Excel. A linearization setup function is also included. With this utility the user can configure up to 32 linearization points and upload them to the meter. All configuration data can be saved to a file for future use.
    This software is accessible via the onboard USB connection on all Helios large display meters, ProVu panel meters, and ProVu-based ProtEX-MAX explosion-proof meters produced since 6 September 2016 (firmware version 4.0 or higher). In order for meters produced prior to 6 September 2016 (firmware version 3.1 or lower) to establish digital communications with a PC, a serial communications adapter is required. For an RS-232 connection, use a PDA1232 adapter.
    To determine the software version of a meter:

    1. Go to the Diagnostics menu () and press Enter button.
    2. Press Up arrow button and scroll to Information menu (Info).
    3. Press Enter to access the software number (), version (), and serial number () information. Write down the information as it is displayed. Continue pressing Enter until all the information is displayed.
    4. The meter returns to Run Mode after displaying all the settings.



    Monitor and Datalog

    Monitor and Datalog

    Setup

    Setup

    Programming

    Programming

    Relays

    Relays

    Data Sheet: LDS6100_1 Datasheets

    Instruction Manual: LIM6100_1_2 Instruction Manual
