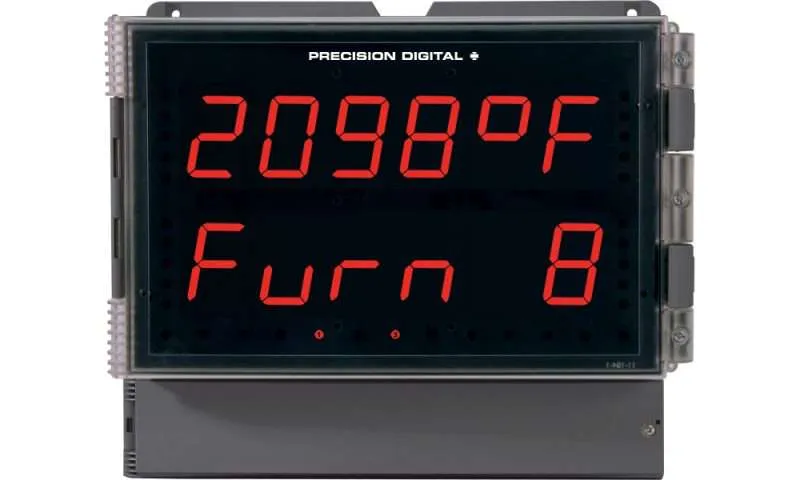

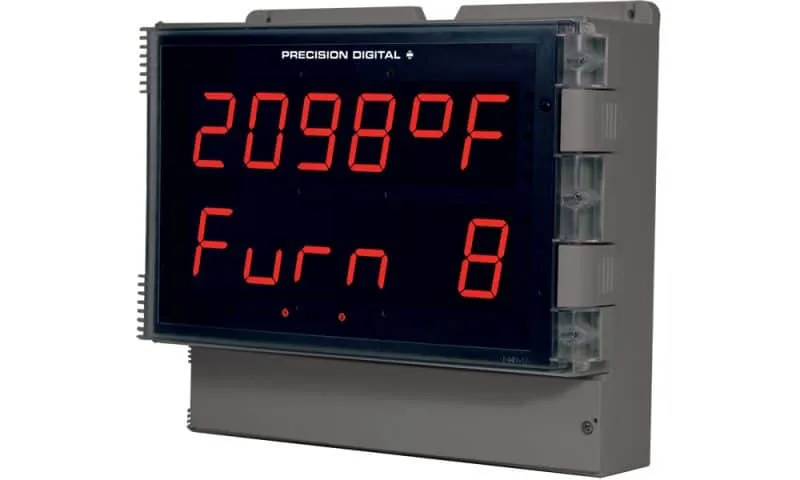

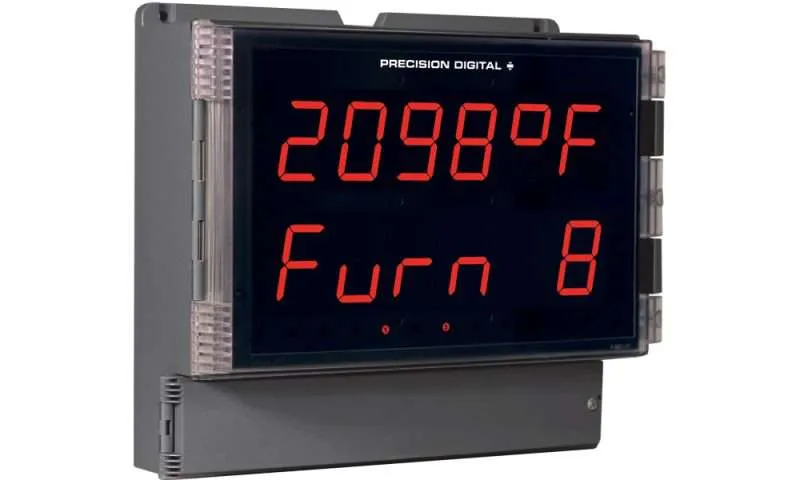

Precision Digital PD2-7000 Helios Temperature Meter

From: $1,343

Part Number: PD2-7000 Categories: , Tags: , ,
  • Free Shipping
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm or Email [email protected]

    FREE Domestic AND SEA Shipping!

    Most orders RM500/USD120 or more ship SEA for FREE!

    • Delivery within the Southeast Asia only.
    • Hazardous items excluded.
    • Extremely heavy or bulky items excluded.
    • Distributors, Resellers and OEMs excluded.
    • Contact us for shipping charge for orders < RM500/USD120
    close-link
  • Free Technical Support
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm

    Setup, Configuration and Technical Support of our Products are FREE.

    We help to check your faulty Instruments too, fill in the form here

    Free phone and email tech support continues as long as you own the product. Click here for contact information.

    close-link
  • Request a Quote
    close-link

    Input

    Thermocouple: J, K, T, E, R, S, B, N, C;
    RTD: 100Ω Pt, 10Ω Cu, 120Ω Ni, 1000Ω Pt

    Helios Features

    • Large 1.80″ Digits
    • Dual Line Display
    • Six Full Digits on Each Line
    • Readable From 100 Feet Away
    • Superluminous Sunlight Readable Display
    • NEMA 4X, IP65 Rated Field Mountable Enclosure
    • Great for Outdoor Use: -40 to 150°F (-40 to 65°C)
    • Program the Meter from a PC with Onboard USB and MeterView® Pro

    PD2-7000 Features

    • 1° or 0.1° Resolution
    • Averages Up To 10 RTD Sensors
    • Automatic Cold Junction Compensation
    • Thermocouple or RTD Input
    • Dual Line Display
    • USB Programming
    $1,343

    Usually ships in 1 to 2 weeks

    • Thermocouple or RTD Input
    • Dual Line Display
    • USB Programming
    $1,528

    Usually ships in 1 to 2 weeks

    • Thermocouple or RTD Input
    • Dual Line Display
    • USB Programming
    $1,426

    Usually ships in 1 to 2 weeks

    • Thermocouple or RTD Input
    • Dual Line Display
    • USB Programming
    $1,611

    Usually ships in 1 to 2 weeks

    What sets the Helios apart from other Large Display Meters is its dual line display with super bright LEDs that can be read even in bright sunlight and up to 100 feet away. Based on Precision Digital’s popular line of ProVu® digital panel meters, the Helios can satisfy a wide variety of level, flow, temperature, pressure, & weight applications. It is available with models that accept 4-20 mA, thermocouple, RTD, pulse, strain gauge, AC and DC volts and current, and even Modbus®.

    Go with the Helios PD2-7000 when you want to display temperature on a large display meter you can see from a distance. The PD2-7000 can accept a variety of thermocouples and RTDs and displays temperature on a six digit display. The PD2-7000’s NEMA 4X, IP65 rated field mountable enclosure, super bright LEDs, and wide operating temperature range make it perfect for outdoor applications.

    Except where noted all specifications apply to operation at +25°C.

    General

    Display: Two lines with 1.8″ (46 mm) high digits, red LEDs; 6 digits per line (-99999 to 999999), with lead zero blanking
    Resolution: 1° or 0.1° for all thermocouples and RTD inputs
    Display Intensity Eight user selectable intensity levels
    Display Update Rate: 5/second (200 ms)
    Overrange: Display flashes 999999
    Underrange: Display flashes -99999
    Display Assignment: Line 1 and line 2 may be assigned to PV1, PV2, PCT, d r-u, d gross, d nt-g, max/min, max & min, set points, units (line 2 only), or Modbus input.
    Programming Methods: Four programming buttons, digital inputs, PC and MeterView Pro software, or Modbus registers.
    Noise Filter: Programmable from 2 to 199 (0 will disable filter)
    Filter Bypass: Programmable from 0.1 to 99.9% of calibrated span
    Recalibration: All ranges are calibrated at the factory. Recalibration is recommended at least every 12 months.
    Max/Min Display: Max/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
    Password: Three programmable passwords restrict modification of programmed settings.
    Pass 1: Allows use of function keys and digital inputs
    Pass 2: Allows use of function keys, digital inputs and editing set/reset points
    Pass 3: Restricts all programming, function keys, and digital inputs.
    Power Options: 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max or 12-24 VDC ± 10%, 15 W max. Powered over USB for configuration only.
    Isolated Transmitter Power Supply: Terminals P+ & P-: 24 VDC ± 10%. 12-24 VDC powered models selectable for 24, 10, or 5 VDC supply (internal P+/P- switch). 85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC supply.
    Non-Volatile Memory: All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
    Fuse: Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse
    Normal Mode Rejection: Greater than 60 dB at 50/60 Hz
    Isolation: 4 kV input/output-to-power line. 500 V input-to-output or output-to-P+ supply.
    Overvoltage Category: Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.
    Environmental: Operating temperature range: -40 to 150°F (-40 to 65°C); Storage temperature range: -40 to 185°F (-40 to 85°C); Relative humidity: 0 to 90% non-condensing
    Connections: Removable and integrated screw terminal blocks accept 12 to 22 AWG wire.
    Enclosure: UL Type 4X, IP65 rated. Polycarbonate & glass blended plastic case, color: gray. Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, black nylon threaded hole plugs with backing nuts.
    Wall Mounting: Four (4) mounting holes provided for mounting meter to wall.
    Pipe Mounting: Optional pipe mounting kit (PDA6260) allows for pipe mounting. Sold separately.
    See PD2-7000 manual for instructions.
    Tightening Torque: Removable Screw Terminals: 5 lb-in (0.56 Nm);
    Digital I/O and RS485 Terminals: 2.2 lb-in (0.25 Nm)
    Overall Dimensions: 10.63″ x 12.59″ x 4.77″ (270 mm x 319.7 mm x 121.2 mm) (H x W x D)
    Weight: 6.10 lbs (2.76 kg)
    UL File Number: UL & C-UL Listed. E160849; 508 Industrial Control Equipment.
    Warranty: 3 years parts & labor
    USB Connection: Compatibility: USB 2.0 Standard, Compliant
    Connector Type: Micro-B receptacle
    Cable: USB A Male to Micro-B Cable
    Driver: Windows 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit, Vista 32/64-Bit, Windows 7 32/64-Bit, Windows 10 32/64-Bit
    Power: USB Port

    Temperature Input

    Inputs: Thermocouple: J, K, T, E, R, S, B, N, C; RTD: 100 Ω platinum (0.00385 & 0.00392 coefficients), 10 Ω copper, 120 Ω nickel, 1000 Ω platinum (0.00385 & 0.00392 coefficients)
    Cold Junction Reference:Automatic, fixed, no user calibration needed
    Temperature Drift: ±2°C maximum from 0 to 65°C ambient temperature ±4°C maximum from -20 to 0°C ambient temperature
    Offset Adjustment: User programmable offset adjust ±50.0 degrees. This parameter allows the user to apply an offset value to the temperature being displayed.
    Input Impedance:Greater than 100 kΩ
    Sensor Break Detection: Open TC or RTD sensor indicated by display flashing oPEn, relays can be programmed to go “On”, “Off”, or to “Ignore” (Note: Ignore is detected as an upscale condition). Analog output goes to the programmed sensor break value.
    RTD Averaging: Up to 10 RTDs connected in parallel can be averaged.
    Accuracy & Ranges:

    TypeRange (°F)AccuracyRange (°C)Accuracy
    J-200 to 2000±1.8°F-129 to 1093±1°C
    K-200 to 2400±1.8°F-129 to 1316±1°C
    T-200 to 752±1.8°F-129 to 400±1°C
    E-200 to 1800±1.8°F-129 to 982±1°CA
    R-50 to 3000±3.6°F-46 to 1649±2°C
    S-50 to 3000±3.6°F-46 to 1649±2°C
    B752 to 3300±3.6°F400 to 1816±2°C
    N-100 to 2300±3.6°F-73 to 1260±2°C
    C32 to 4100±3.6°F0 to 2260±2°C
    10Ω-328 to 500±0.2°F-200 to 260±0.1°C
    100Ω-328 to 1562±0.7°F-200 to 850±0.4°C
    120Ω-110 to 500±0.2°F-79 to 260±0.1°C
    1000Ω-328 to 900±0.7°F-200 to 482±0.4°C

    Input Impedance:Voltage Input: Greater than 3 MΩ, Current Input: 50 – 100 Ωv
    Input Overload: Voltage input protected up to 500 VDC. Current input protected up to 10 A by a 10A/300V fast acting non-resettable fuse. Fuse is NOT resettable after a fault; unit must be factory reconditioned.
    F4 Digital Input Contacts: 3.3 VDC on contact. Connect normally open contacts across F4 to COM.
    F4 Digital Input Logic Levels: Logic High: 3 to 5 VDC, Logic Low: 0 to 1.25 VDC

    Relays

    Rating: 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads
    Noise Suppression: Noise suppression is recommended for each relay contact switching inductive loads. See manual for details.
    Deadband: 0-100% of span, user programmable
    High Or Low Alarm: User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turn off).
    Relay Operation: Automatic (non-latching) and/or manual reset; Latching (requires manual acknowledge) with/without clear; Pump alternation control (2 to 4 relays); Sampling (based on time); Off (disable unused relays and enable Interlock feature); Manual on/off control mode
    Relay Reset: User selectable via front panel buttons or digital inputs

    1. Automatic reset only (non-latching), when the input passes the reset point.
    2. Automatic + manual reset at any time (non-latching)
    3. Manual reset only, at any time (latching)
    4. Manual reset only after alarm condition has cleared (latching)

    Note: Front panel button or digital input may be assigned to acknowledge relays programmed for manual reset.
    Time Delay: 0 to 999.9 seconds, on & off relay time delays; Programmable and independent for each relay
    Fail-Safe Operation: Programmable and independent for each relay. Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.
    Auto Initialization: When power is applied to the meter, relays will reflect the state of the input to the meter.

    Isolated 4-20 mA Transmitter Output

    Output Source: Process variable (PV), max, min, set points 1-4, Modbus input, or manual control mode
    Scaling Range: 1.000 to 23.000 mA for any display range
    Calibration: Factory calibrated: 4.000 to 20.000 = 4-20 mA output
    Analog Out Programming: 23.000 mA maximum for all parameters: Overrange, underrange, max, min, and break
    Accuracy: ± 0.1% of span ± 0.004 mA
    Temperature Drift: 0.4 µA/°C max from 0 to 65°C ambient, 0.8 µA/°C max from -40 to 0°C ambient
    Note: Analog output drift is separate from input drift.
    Isolated Transmitter Power Supply: Terminals I+ & R: 24 VDC ± 10%. Isolated from the input at >500 V. May be used to power the 4-20 mA output or other devices. All models rated @ 40 mA max.
    External Loop Power Supply: 35 VDC maximum
    Output Loop Resistance:

    Power supplyMinimumMaximum
    24 VDC10 Ω700 Ω
    35 VDC (external)100 Ω1200 Ω



    RS485 Serial Communications Terminal

    Compatibility: EIA-485
    Connectors: Removable screw terminal connector
    Max Distance: 3,937′ (1,200 m) max
    Status Indication: Separate LEDs for Power (P), Transmit (TX), and Receive (RX)

    Modbus® RTU Serial Communications Protocol

    Slave: ID 1 – 247 (Meter address)
    Baud Rate: 300 – 19,200 bps
    Transmit Time Delay: Programmable between 0 and 199 ms
    Data: 8 bit (1 start bit, 1 or 2 stop bits)
    Parity: Even, Odd, or None with 1 or 2 stop bits
    Byte-To-Byte Timeout: 0.01 – 2.54 second
    Turn Around Delay: Less than 2 ms (fixed)

    Digital Input & Output Terminal

    Channels: 4 digital inputs & 4 digital outputs
    Digital Input Logic High: 3 to 5 VDC
    Digital Input Logic Low: 0 to 1.25 VDC
    Digital Output Logic High: 3.1 to 3.3 VDC
    Digital Output Logic Low: 0 to 0.4 VDC
    Source Current: 10 mA maximum output current
    Sink Current: 1.5 mA minimum input current
    +5 V Terminal: To be used as pull-up for digital inputs only. Connect normally open pushbuttons across +5 V & DI 1-4.WARNING! DO NOT use +5 V terminal to power external devices.

    Dimensions

    Helios Large Display Meter dimensions




    Wall Mounting

    The meter can be mounted to any wall using the four provided mounting holes. Note that the bottom mounting holes are located underneath the front door panel. To mount the meter to a wall, follow these instructions.

    1. Prepare a section of wall approximately 11″ x 13″ (280 mm x 330 mm) for meter mounting by marking with a pencil the mounting holes (shown in the image to the right) on the wall.
    2. Using a drill bit slightly smaller than the girth of the mounting screws, pre-drill holes at the mounting locations previously marked.
    3. Insert mounting screws into the four mounting holes and screw them into the pre-drilled holes. Do not overtighten the mounting screws as it is possible that the enclosure could crack and become damaged.



    Helios Large Display Meter dimensionsMeter Mounting Holes

    Pipe Mounting

    The meter can also be mounted to a pipe using the optional pipe mounting kit (PDA6260). This kit includes two mounting plates, two U-bolts, and the necessary nuts and bolts. To mount the meter to a pipe using the pipe mounting kit accessory, follow these instructions.

    1. Secure the mounting plates to the top and bottom (for vertical pipes) or left and right (for horizontal pipes) of the reverse side of the meter enclosure using the provided fasteners. Do not overtighten the fasteners as it could cause damage to the enclosure.
    2. Using the provided nuts and U-bolts, secure the mounting plates to the pipe enough torque such that the meter cannot be moved up or down (or side to side).

    Helios Large Display Meter dimensions

    Horizontal Pipe Mount Assembly



    Helios Large Display Meter dimensions
    Vertical Pipe Mount Assembly

    Connections Labeling

    The connectors’ label, affixed to the inside of the lower door panel, shows the location of all connectors available with requested configuration.

    Helios Large Display Meter Connections

    MeterView® Pro Software

    MeterView Pro VideoMeterView® Pro software is designed for use with ProVu, ProtEX-MAX, or Helios Series meters and allows users to remotely program, monitor, and datalog using a PC. Remote programming allows for all available meter settings to be programmed through an easy, user-friendly interface. The data acquisition feature allows the user to gather readings from a meter at user-selected intervals and generate charts using common tools like Microsoft® Excel. A linearization setup function is also included. With this utility the user can configure up to 32 linearization points and upload them to the meter. All configuration data can be saved to a file for future use.
    This software is accessible via the onboard USB connection on all Helios large display meters, ProVu panel meters, and ProVu-based ProtEX-MAX explosion-proof meters produced since 6 September 2016 (firmware version 4.0 or higher). In order for meters produced prior to 6 September 2016 (firmware version 3.1 or lower) to establish digital communications with a PC, a serial communications adapter is required. For an RS-232 connection, use a PDA1232 adapter.
    To determine the software version of a meter:

    1. Go to the Diagnostics menu () and press Enter button.
    2. Press Up arrow button and scroll to Information menu (Info).
    3. Press Enter to access the software number (), version (), and serial number () information. Write down the information as it is displayed. Continue pressing Enter until all the information is displayed.
    4. The meter returns to Run Mode after displaying all the settings.

    Monitor and Datalog

    Monitor and Datalog

    Setup

    Setup

    Programming

    Programming

    Relays

    Relays
