OWON 2-Channel Arbitrary Waveform Generator Without Counter

Last Updated: 24/02/2019
OWON Logo

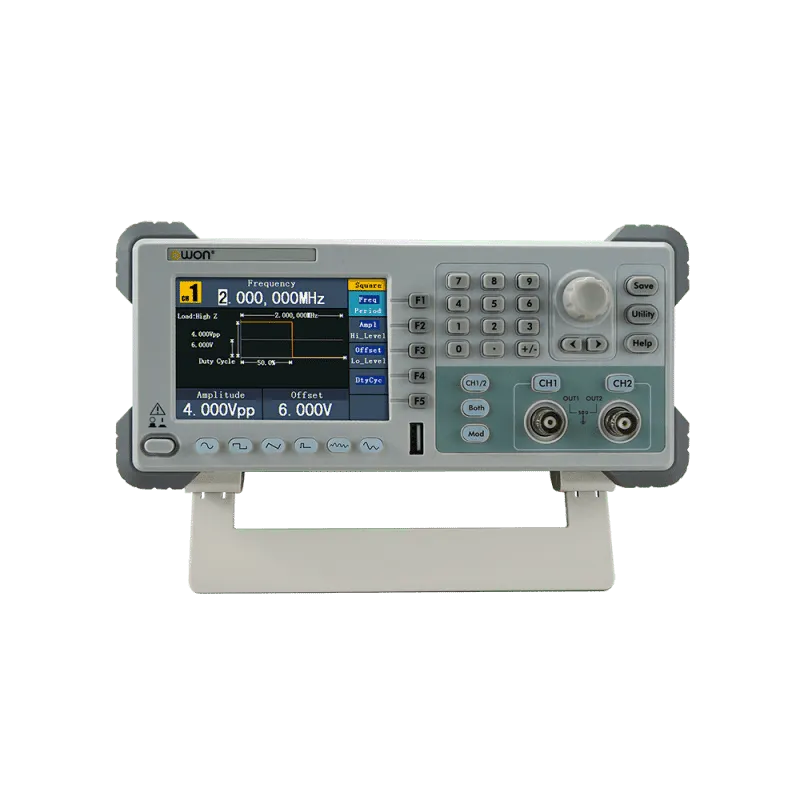

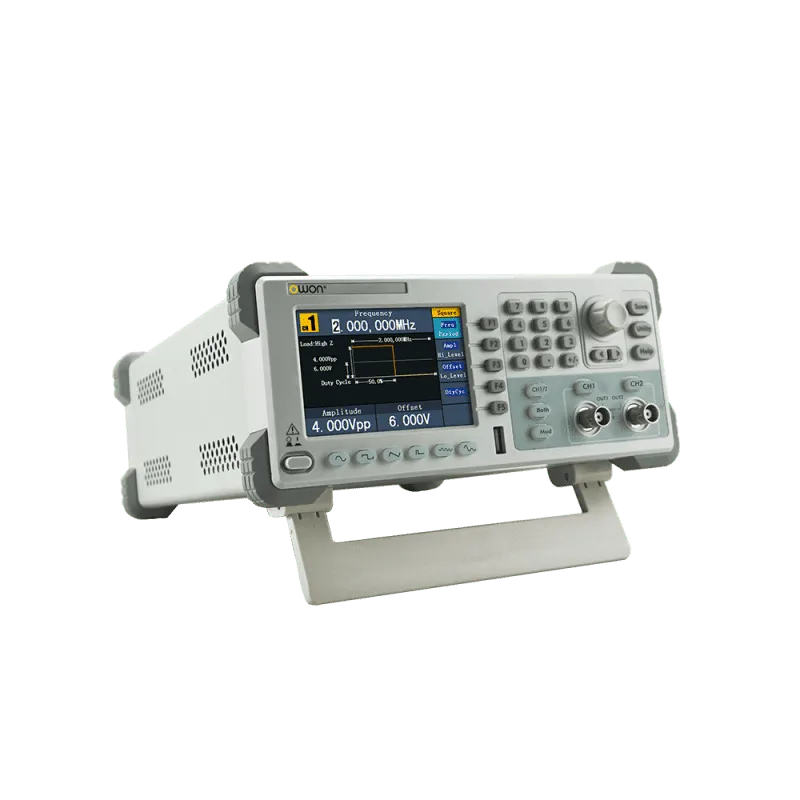

OWON AG1022

$315

Usually ships in 2 to 4 weeks

Part Number: AG1022 Categories: ,
  • Free Shipping
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm or Email [email protected]

    FREE Domestic AND SEA Shipping!

    Most orders RM500/USD120 or more ship SEA for FREE!

    • Delivery within the Southeast Asia only.
    • Hazardous items excluded.
    • Extremely heavy or bulky items excluded.
    • Distributors, Resellers and OEMs excluded.
    • Contact us for shipping charge for orders < RM500/USD120
    close-link
  • Free Technical Support
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm

    Setup, Configuration and Technical Support of our Products are FREE.

    We help to check your faulty Instruments too, fill in the form here

    Free phone and email tech support continues as long as you own the product. Click here for contact information.

    close-link
  • Request a Quote
    close-link
    • Channel: Dual
    • Frequency Output: 25MHz
    • Sample Rate: 125MS/s
    • Vertical Resolution: 14 bits
    1. Dual ChannelEquivalent Output

    Dual equivalent channel output. Waveform and status copy can be implemented between channels, frequency/amplitude/phase coupling.

    Dual Channel Equivalent Output

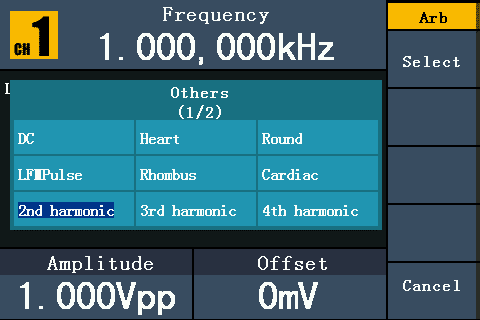

    1. Build-in 45 arbitrary waveforms

    Build-in educational/industrial common waveforms and divide it into common, math, engineer, window, other types.

    Build-in 45 arbitrary waveforms



    ModelAG1022
    Channeldual
    Frequency Output25MHz
    Sample Rate125MS/s
    Vertical Resolution14 bits
    Waveform
    Standard WaveformSine, Square, Pulse, Ramp, and Noise
    Arbitrary WaveformExponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrar y waveform
    Frequency (resolution 1μHz)
    Sine1μHz – 25MHz
    Square1μHz – 5MHz
    Pulse1μHz – 5MHz
    Ramp1μHz – 1MHz
    Noise25MHz (-3dB) (typical)
    Arb1μHz – 10MHz
    Amplitude
    Amplitude1mVpp – 10Vpp (50Ω), 1mVpp – 20Vpp (high impedance)
    Resolution1m Vpp or 4 digits
    DC Offset Range (AD+DC)±5V (50Ω), ±10V (high impedance)
    DC Offset Range Resolution1mV or 4 digits
    Load Impedance50Ω (typical)
    Arbitrary Waveform
    Wave Length2 pts to 8K pts
    Non-volatile Memory64M byte

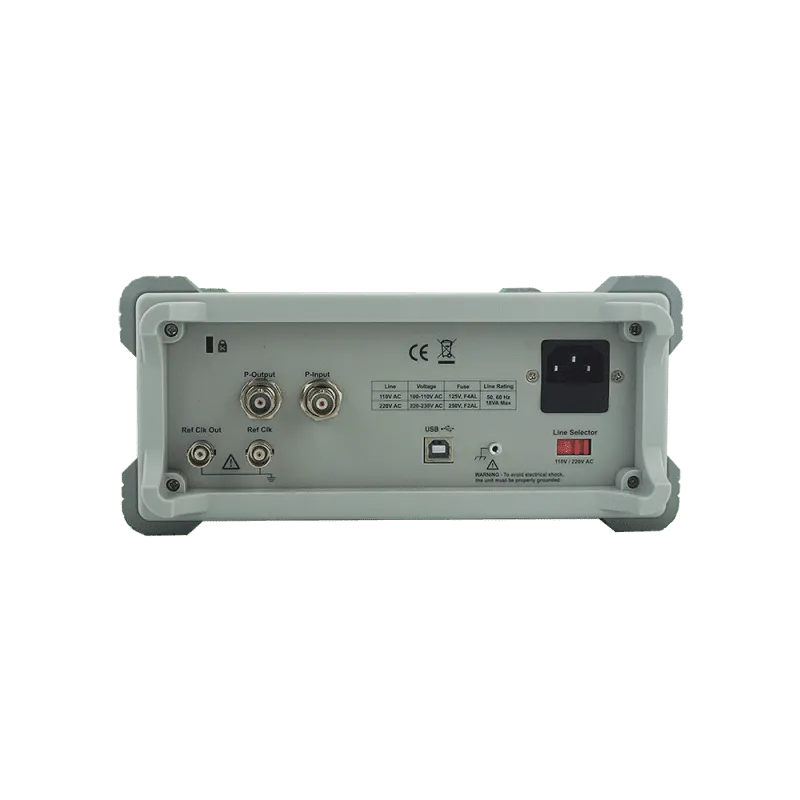

    Power Amplifier Module (optional)
    Input ImpedanceOutput Impedance<2 Ω
    Max Input VoltageGainX 10
    Max Output VoltageOffset<7%
    Output Slew RateBandwidth (at full power)DC 100kHz
    Max Output Power10 W

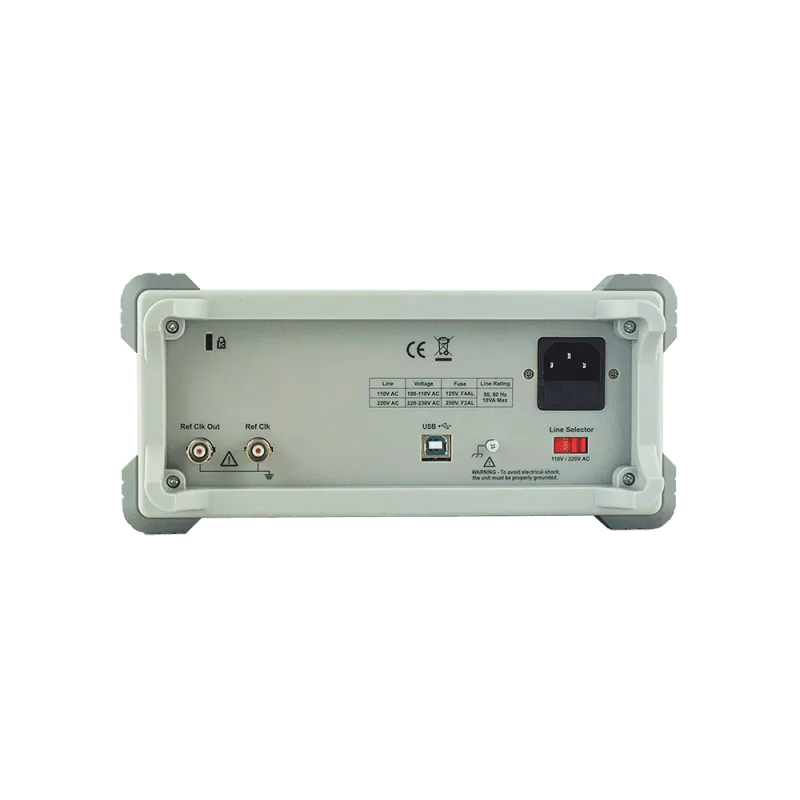

    Input / Output
    Display4 inch (480 × 320 pixels) LCD
    Typeexternal reference clock input / output
    Communication InterfaceUSB host, and USB device, RS232 (option)
    Mechanical
    Dimension (W×H×D)235 × 110 × 295 (mm)
    Device Weight3.00 kg
