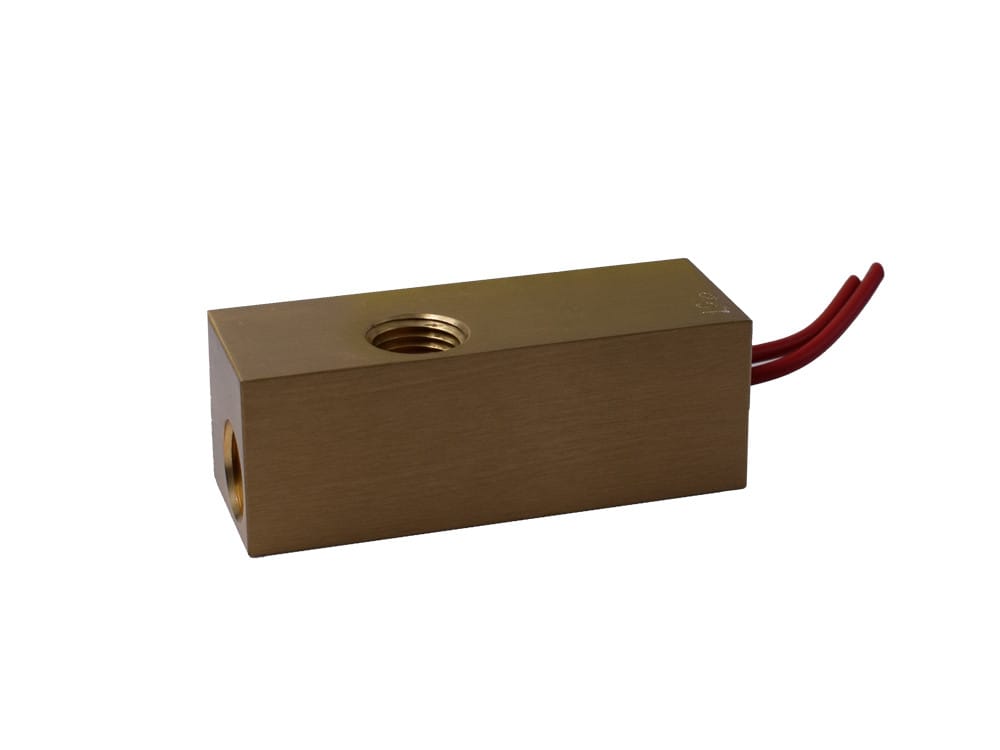

Gems FS-927 Series Flow Switch
| sku | FS-927 |
| Primary Material of Construction | Alloy |
| Sensor Type | Piston Type |
| Adjustable Range | N/A |
| Flow Setting (GPM) | 0.50 |
| Body Material | Brass |
| Port Size | 1/4″ NPT Female |
| Switch Type | SPST, N.O. (20VA) |
| Set Point Accuracy | ±15% |
| Maximum Pressure (PSI) | Over 500 |
| Minimum Temperature (°F) | -20 |
| Maximum Temperature | 200 |
| Electrical Termination | 18 AWG, 24″-26″ long PVC Leads |
| Set Point Differential | 20% |
| Wetted Materials | Brass, 316 Stainless Steel |
| Approvals | UL Recognized, CSA Listed, CE |
| Recommended Filtration | 50 micron |
Measuring only 1″ x 2-3/4″ (25 mm-70 mm), these compact switches are ideal for use where space is at a premium. Designed for use with water and oil, these switches are suitable for high volume OEM applications. They are ideal for coolant or lubricant flow monitoring in portable equipment and many other applications with space constraints.
