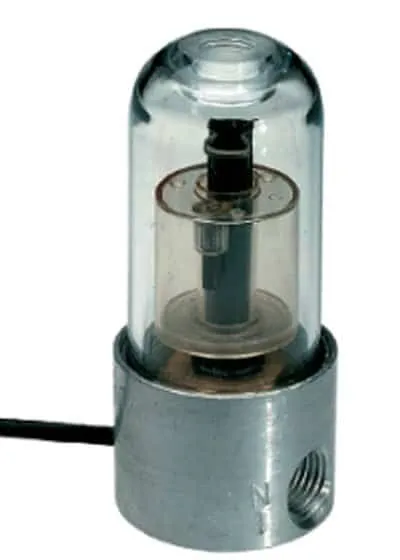

Gems LS-3 Series Single-Point Level Switch
| Actuation Level | 3/4″ |
| Switch Operation | Normally Open (Reversible) |
| Min. Liquid | 0.75 |
| Stem Material | Polysulfone |
| Float Material | Polysulfone |
| Float Diameter | 1″ |
| Mounting Size | 1/4″ NPT Femaile Inlet 1/8″ NPT Outlet |
| Mounting | Vertical |
| Switch Type | SPST (20 VA) |
| Input | N/A |
| Output | N/A |
| Maximum Pressure (PSI) | 50 |
| Minimum Temperature (°F) | -40 |
| Maximum Temperature (°F) | 120 |
| Electrical Termination | 22 AWG, 24″ long Polymeric leads |
| Wetted Materials | Polysulfone, Bras, Aluminum, Polycarbonate Viton A |
The durable construction of these reed switch designs ensures long, trouble-free service. Because the effects of shock, wear and vibration are minimized, these hermetically sealed level switches provide precise repeatability with no more than 1% deviation. The level switch actuation points remain constant over the life of the unit.
Ideal for shallow tanks or restricted spaces, or for any low-cost, high volume use. LS-3 Series are available in FDA/NSF compliant materials upon request, consult Gems™ for details.
NEW LS-3 MICRO: Gems’ newest addition to the LS-3 series family is the LS-3 Micro. It is the smallest LS-3 series switch available. These units are ideal for potable water, medical devices and other compact appliances such as printers. Gems LS-3 Micro float enables use in lighter-than-water fluids. These switches are also made with FDA compliant material, which expands the scope in which these floats can be used.
