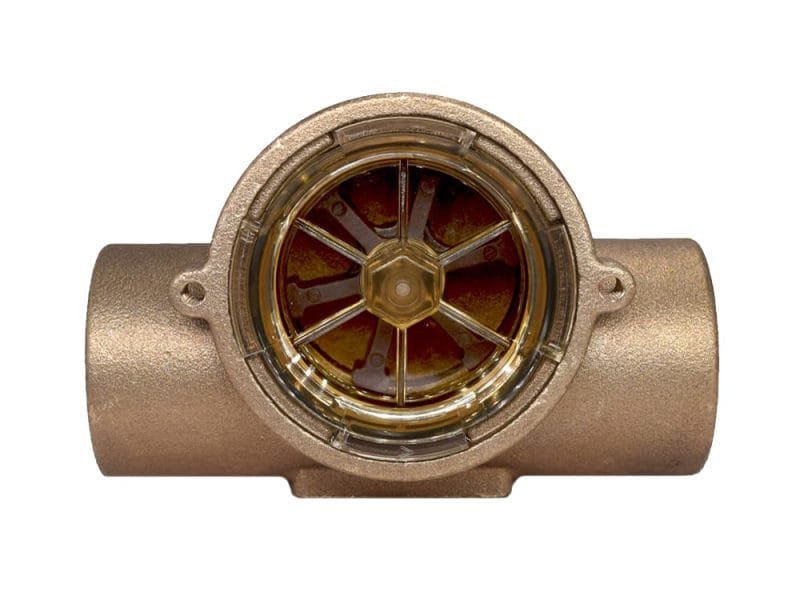

Gems RFA Type Electronic Flow Sensor

Last Updates: 15/02/2021

Gems 230215


Availability: 1 in stock

Sensor TypeRotorFlow
Standard Flow Range (GPM)8.0 – 60.0
Flow Range (GPM)8.0-60.0
Body Material316 Stainless Steel
Port Size1″ NPT Female
Input Power24 VDC ±10%
Output0-10 VDC Anaolg Signal @ 1mA, Max.
Low Flow Accuracy±15%
Standard Flow Accuracy±15%
Maximum Pressure (PSI)200
Minimum Temperature (°F)-20
Maximum Temperature (°F)212
Electrical Termination22 AWG, 24″-24″ PVC Cable
Wetted Materials316 Stainless Steel, PPS Composite, Polysulfone, Viton (Low Flow Adapter – Polypropylene)
Recommended Filtration150 micron


Gems™ Sensors popularized the RotorFlow’s® paddlewheel design by combining high visibility rotors with solid-state electronics that are packaged into compact, panel mounting housings. They provide accurate flow rate output with integral visual confirmation and an unprecedented price/performance ratio.
