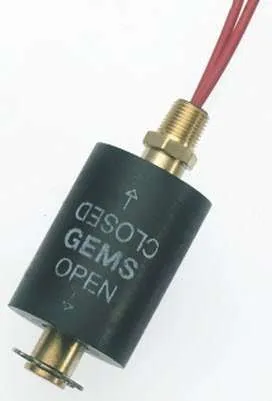

Gems LS-1800 Series Single-Point Level Switch

Last Updates: 15/02/2021

Gems Sensors & Controls 01811


Actuation Level7/8″
Switch OperationNormally Open (Non-Reversible)
Min. Liquid0.65
Stem Material316 Stainless Steel
Float MaterialTeflon
Float Diameter1 1/4″
Mounting Size1/8″ NPT Male
Switch TypeSPST (20 VA)
Maximum Pressure (PSI)300
Minimum Temperature (°F)-40
Maximum Temperature (°F)250
Electrical Termination18 AWG, 24″ long, Polymeric leads
Wetted Materials316 Stainless Steel, Teflon, Hysol
ApprovalsUL Recognized, CSA Listed, CE, ROHS

Excellent stability for general use in oils and water. With large float displacement, switch withstands rough service; suitable for high viscosity liquids. Intermediate in size, LS-1800 switches provide long life and dependability to meet a broad range of requirements.
