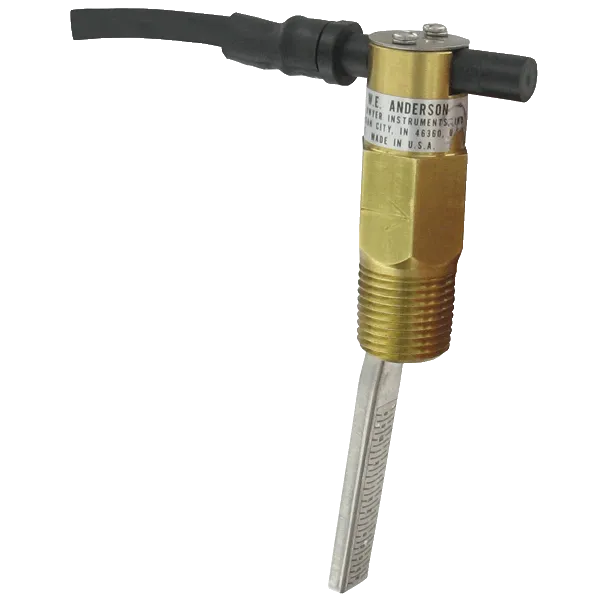

Dwyer Series V10 Flotect® Mini-Size Flow Switch

Part Number: Series V10 Categories: ,
  • Email Us: sales@celectric.com.my
  • WhatsApp Us: +60165519084
  • The SERIES V10 Flotect® Mini-Size Flow Switches is designed to provide inexpensive, reliable monitoring of the presence or absence of flow in a system. This series is available for field installation in pipelines from 1/2 to 2″ diameter and available in brass or 303 SS body.

    • Proving flow in boilers, hot water heaters, and chillers
    • Protects pumps, motors and other equipment against low or no flow
    • Automatically starts auxiliary pumps and engines

    Service : Compatible gases or liquids.

    Wetted Material : Vane: 301 SS; Body: Brass or 303 SS; Pin and Magnet: Ceramic 8.

    Temperature Limit : 200°F (93°C).

    Pressure Limit : Brass body: 1000 psig (69 bar), 303 SS body: 2000 psig (138 bar).

    Enclosure Rating : Weatherproof, meets NEMA 4X (IP66).

    Switch Type : SPST hermetically sealed reed switch. Field adjustable for normally open or normally closed.

    Electrical Rating : 0.5 A @ 120 VAC; 1.5 A @ 24 VDC res.; 0.001 A @ 200 VDC res.

    Electrical Connections : 18 AWG, 19″ (483 mm) long, PVC jacket. Rated 221°F (105°C).

    Process Connection : 1/2″ male NPT standard. Contact factory for other options.

    Mounting Orientation : Switch can be installed in any position but the actuation/deactuation flow rates are based on horizontal pipe runs and are nominal values.

    Set Point Adjustment : Vane is trimmable.

    Weight : 5.5 oz (0.16 kg).

    Agency Approvals : CE, CSA, UR.

    Switch Enclosure : Nylon.

    • Magnetically actuated switching design gives superior performance with rugged, hermetically sealed reed switch
    • Simple field switch adjustment allows user to toggle between Normally Open (NO) or Normally Closed (NC) with no change in the electrical connection
    • Switch housing is located outside the process media, allowing simple switch changeover or maintenance without interruption of process flow
    • Full size, field trimmable stainless steel vane provided with removable template calibrated for brass or ductile iron reducing tees with forged steel straight tee/bushing combinations

    Instruction Manual: Instruction Manual
    Datasheet: Series V10 Catalog Page
