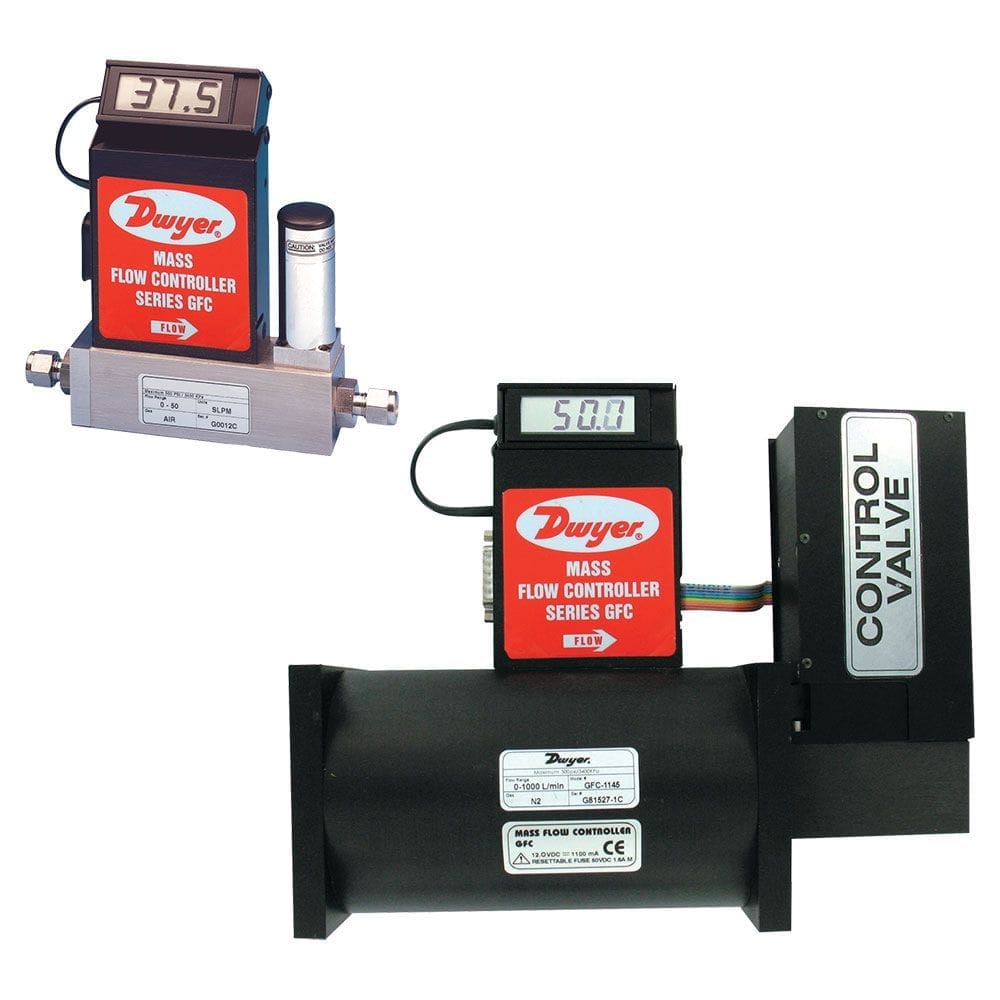

Dwyer Series GFC Gas Mass Flow Controllers

Part Number: Series GFC Categories: ,

Email Us: sales@celectric.com.my
WhatsApp Us: +60165519084

The SERIES GFC Gas Mass Flow Controllers combine a straight tube sensor with a restrictor flow element. It is available for flow ranges up to 1000 L/min and offered in aluminum or 316 SS in 1/4″, 3/8″, 1/2″ and 3/4″ sizes.

California Residents:  Click Here for Proposition 65 WARNING.

Product Applications

  • Gas flow measurement
  • Gas flow control
  • Operating pumps and valves
  • Process equipment
  • Vacuum processes
  • Glass and metal coating
  • Film depostition

Service : Clean gases compatible with wetted parts.

Wetted Materials : GFC-1XXX: Anodized aluminum, brass, 316 SS and fluoroelastomer O-rings; GFC-2XXX: 316 SS and fluoroelastomer O-rings.

Accuracy : ±1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ±1.5% FS.

Repeatability : ±0.5% of FS.

Response Time : 2 seconds to within ±2% of actual flow.

Output : Linear 0 to 5 VDC and 4 to 20 mA.

Maximum Particulate Size : 5 microns.

Temperature Limits : 32 to 122°F (0 to 50°C).

Power Supply : ±12 VDC.

Process Connections : 1/4″ compression fitting for flow rates ≤50 L/m; 3/8″ for 100 and 200 L/m; 1/2″ for 500 L/min; 3/4″ for 1000 L/min.

Pressure Limits : 1000 psig (68.9 bar); Series GFC-X143, X144, X145, 500 psig (34.5 bar).

Leak Integrity : 1 x 10-9 sccs of He.Display:90° tiltable, 3-1/2 digit.

Agency Approvals : CE.

  • Provides high accuracy and repeatability
  • Flow rates are virtually unaffected by temperature and pressure variations
  • Utilizes an electromagnetic valve and PID electronics to maintain continuous control by comparing measured sensor signal set to flow rates
  • Set points can be adjusted with local potentiometers or remotely via 0 to 5 VDC or 4 to 20 mA analog signal
  • Actual gas flow is displayed in engineering units on a 3-1/2 digit, 90° tiltable LCD readout
  • Can be used with Series GFT2 Flow Totalizer for applications requiring totalization
  • NIST traceable certificate included
