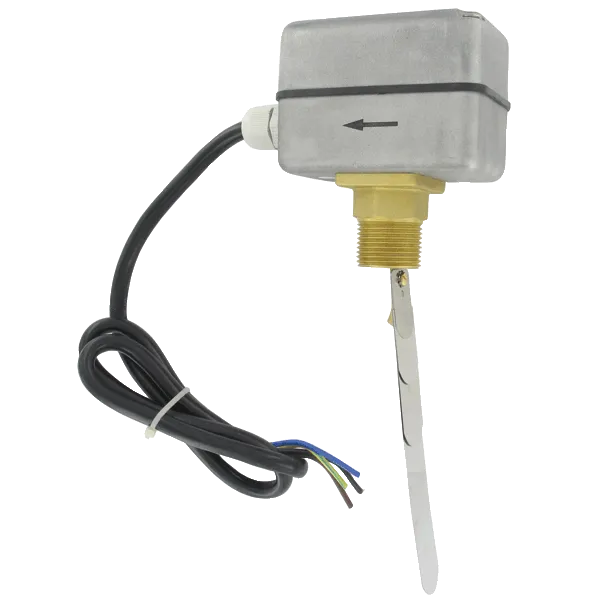

Dwyer Series FS-2 Vane Flow Switch

Request a Quote
close-link

Part Number: Series FS-2 Categories: ,
  • Free Shipping
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm or Email [email protected]

    FREE Domestic AND SEA Shipping!

    Most orders RM500/USD120 or more ship SEA for FREE!

    • Delivery within the Southeast Asia only.
    • Hazardous items excluded.
    • Extremely heavy or bulky items excluded.
    • Distributors, Resellers and OEMs excluded.
    • Contact us for shipping charge for orders < RM500/USD120
    close-link
  • Free Technical Support
    celectric logo

    Questions? Call +604-502 1894 Mon-Fri 8:30am to 5:30pm

    Setup, Configuration and Technical Support of our Products are FREE.

    We help to check your faulty Instruments too, fill in the form here

    Free phone and email tech support continues as long as you own the product. Click here for contact information.

    close-link
  • The Series FS-2 Vane Flow Switches offers an economical flow proving solution. The FS-2 paddles are adjustable to fit 1 to 8″ size pipe.

    Product Applications

    • Boiler flow proving
    • Hot water heaters
    • Chillers
    • Cooling lines
    • Machinery
    • Liquid transfer systems

    Service : Compatible liquids.

    Wetted Materials : Bellow: Tin-bronze; Vane: SS; Body: Forged brass.

    Temperature Limits : 230°F (110°C).

    Pressure Limits : 145 psig (10 bar).

    Enclosure Rating : NEMA 4 (IP64).

    Switch Type : SPDT snap switch.

    Electrical Rating : 10 A res, 3 A ind @ 250 VAC.

    Electrical Connection : Cable gland with attached wire leads or optional conduit connection.

    Process Connection : 1″ male NPT or BSPT.

    Mounting Orientation : Switch must be installed vertically on horizontal pipe runs.

    Set Point Adjustment : Four vane combinations and an adjustment screw.

    Enclosure : Die-cast aluminum alloy.

    Weight : 28.22 oz (0.8 kg).

    Agency Approvals : CE.

    • Field adjustable set point adjustment screw allows for easy flow switch modification
    • Custom application set points enabled by field adjustable vane layers
    • Aluminum weatherproof housing permits outdoor installation
