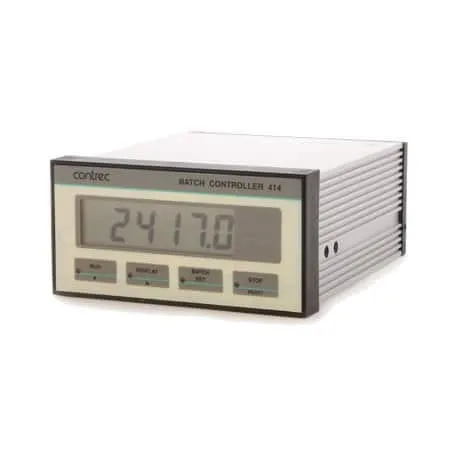

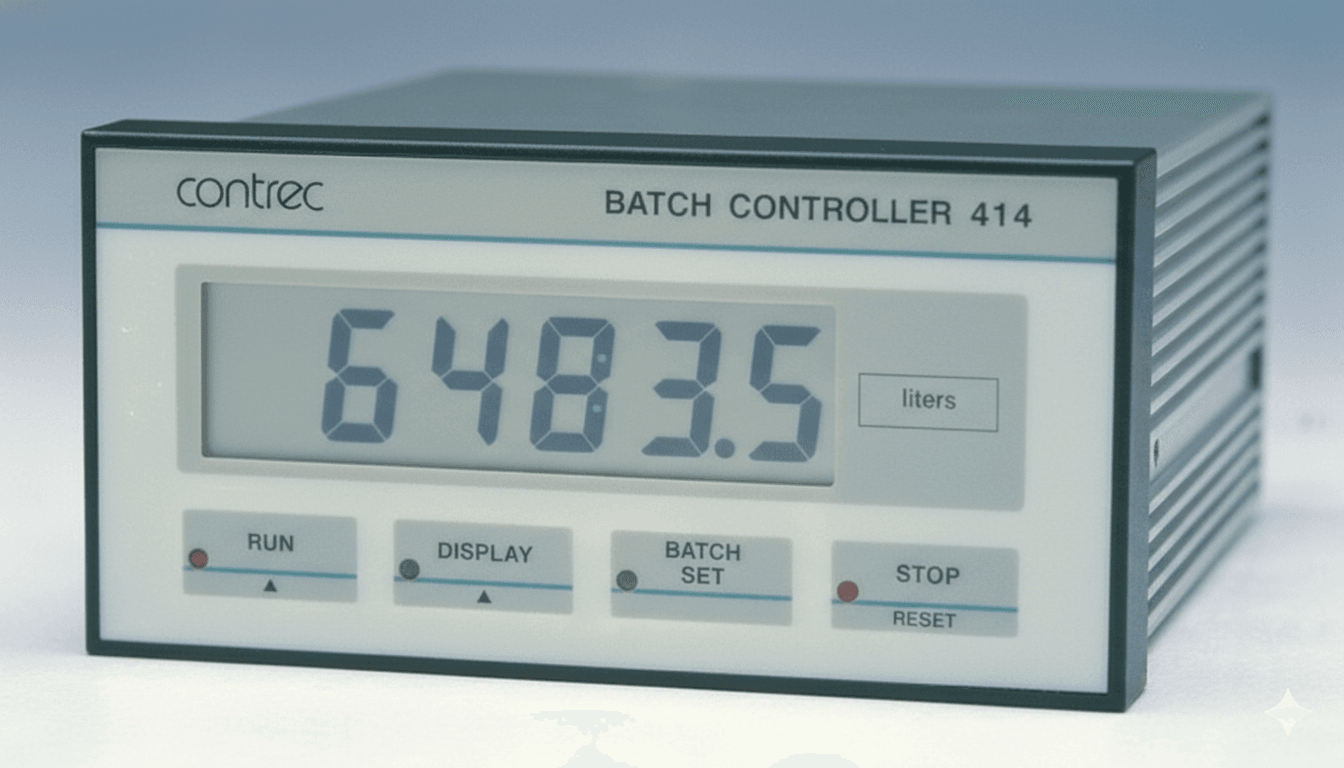

Contrec 414 Batch Controller (Discontinued)

Part Number: 414D-10E0 Category: Tag:

Email Us: sales@celectric.com.my
WhatsApp Us: +60165519084

Available Input Type:

  • Analog Input
  • Pulse Input
  • Pulse or Frequency input with signal conditioner
  • High-Speed response (Pulse or Frequency)
  • Quadrature pulse
  • Temperature Compensation (4 – 20mA)
  • Temperature Compensation (RTD)

Remark: Contrec 414 has discontinued, please find the replacement sku the Contrec 424

  • Contrec 414 Batch Controller is suitable to flow applications where precise measurement and control of batch quantities is required.
  • Batch total, flow rate, the accumulated total and preset value can be displayed in engineering units on the large LCD display.
  • The batch controller will interface to most flowmeters with versions available for pulse also analogue inputs.
  • The four key at front panel makes easy to set batch quantity also to start and stop batches.
  • When overrun caused by slow-closing valves, the Automatic Overrun Compensation will automatically compensate for any overrun with an average of 3 batches.
  • The maximum batch limit can set during setup, hence to prevent the operator enter a batch size that exceeds this limit.
  • The Signal Timeout allows the flow signal cuts out midway through a batch, the output relays are de-energized, while an alarm signalled via an open collector output.
  • Connect remote push-button switches to the rear terminal strip also to start and stop batches.
  • The preset time delay of Contrec 414D can program to automatically restart the batch after a preset time delay.
  • Batch Controller can program as count up from zero, or to count down from the batch quantity.
  • End of Batch signal is provided via an open collector transistor output.

Data Sheet: Contrec 414 Data Sheet

Instruction Manual:Contrec 414D Instruction Manual
